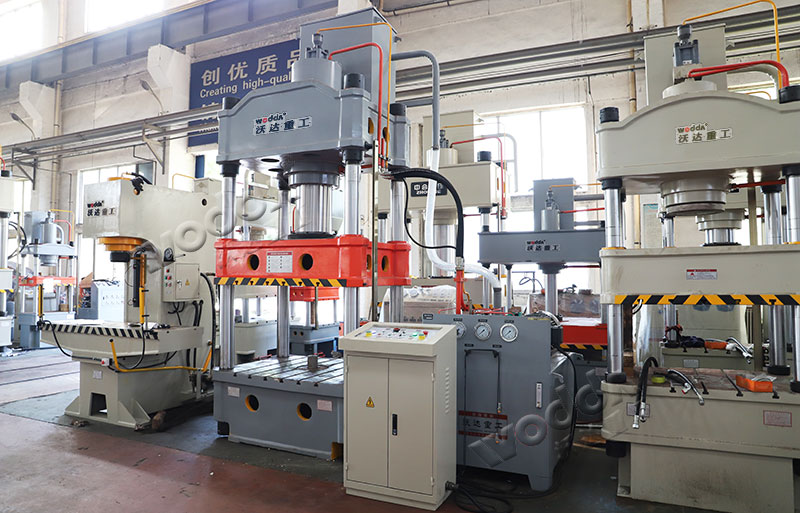

315噸四柱液壓機的使用說明書

液壓機屬于大型機械機床設備，如果操作不當可能會引發重大安全事故，帶來不可挽回的損失，因此，按照規范操作特別重要；山東沃達重工機床有限公司出廠的每一臺液壓機都會配備液壓機床使用說明書，以下摘錄315噸四柱液壓機的安全使用說明書，供參考。

尊敬的用戶：

To: esteemed user

衷心感謝您對我公司的信任，使用我公司產品，在使用本產品過程中，請時刻牢記以下注意事項：

We appreciate your trust to our company and product sincerely.While operating this machine, please do remember below attentions:

1、操作機器前，請仔細閱讀使用說明書，并遵照執行，不了解機器結構性能及操作程序者，不得擅自開動機器及拆卸維修。

Before operating machine, please read operation manual carefully and act on it strictly. If you do not know its structure performance and operation procedure well, please do not operate, disassemble, repair this machine arbitrarily.

2、嚴禁液壓缸空頂試壓。

Hydraulic cylinder pressure test without putting work piece is prohibited.

3、嚴禁超載、超行程及超過最大偏心距使用。

Overload, over travel and exceed Max. eccentricity is prohibited.

4、初次試車及換油后，試車應排凈系統內空氣。

Initial operation or after finishing oil change, Empty air in system then can start to operate.

5、請保持油液清潔。

Please keep oil clean.

6、、可靠電氣設備接地必須牢固。

Electric equipment must be earthed reliably.

7、非專業人員不得操作或調整機器，不得對電氣線路及液壓管道進行拆卸、改動。

No-professional workers are not allowed to manipulate or adjust machine,

also to disassemble, modify electric equipment circuit and hydraulic tubing.

8、本機動力電路采用380V三相四線制（或特殊要求三相五線制），電氣操縱柜嚴禁頻繁移動。

Thismachinepowercircuituse380voltage3phase4wiresystem（orascustomerspecialrequest3phase5wiresystem),electricoperatingcabinetisstrictlyprohibitetomovfrequently.

315T四柱液壓機安全使用說明書

目錄

Catalogue

一、設備外形圖

(1) Outline drawing of multifunction Four column Hydraulic Press

二、機器的用途及特點

(2) The use and characteristic of the machine

三、主要技術參數

(3) Main Technical Parameter

四、機器的結構、概述

(4) Brief Introduction for Equipment Structure

五、機器的安裝、試車

(5) Equipment Installation and Test Run

六、維修保養及安全操作規程

(6) Maintenance and safety regulations for operations

七、機器的故障及清除方法

(7) Equipment common fault and solution

八、液壓原理圖

(8) Hydraulic schematic

九、電氣原理圖

(9) Machine Circuit Diagram

十、地基圖

(10) Foundation drawing

十一、易損零件明細表

(11)quick-wear part list
